THT709 Digital Terrestrial HD Receiver
TV entertainment in High Definition
- HDTV receiver for digital DVB-T2 Free-To-Air TV and radio programmes via outdoor or indoor antenna
- Supports HEVC/H.265
- 400 channels memory capacity
- Dolby® Digital Plus available on HDMI
- DVB-T2 compliant, UHF/VHF tuner
- Support of active antenna by 5 V output
- Excellent audio and video quality
-
Digital audiovisual interface that renders audiovisual signals from an external source (Blu-ray player, games console, digital terminal, etc.) with no loss. It is the replacement for the SCART lead and ideal for HD TVs. ×
-
The high-performance Dolby Audio sound system offers a degree of audio immersion that takes the cinematic experience into another dimension. It transmits dialogue and soundtracks perfectly, reducing any distortion. Transform your TV into a home cinema, thanks to the Dolby Audio sound experience. ×
-
-

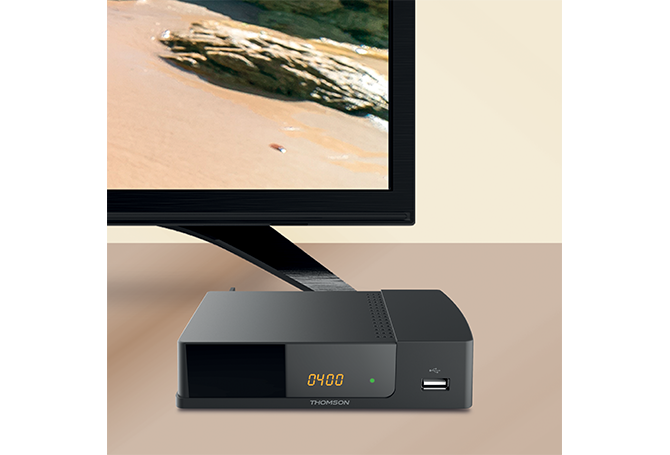

TV entertainment in High Definition
Compact and efficient HD receiver with quick installation and easy handling. It is perfect for receiving terrestrial programmes in HD and SD. Record TV shows and series to an external USB storage device. Easily see what’s on TV and book recordings using 7 Day EPG (Electronic Programme Guide). Play music and videos or view pictures via USB.
Description

Features
- New tuner technology for excellent reception
- USB port: record TV programmes, Timeshift, play files, update receiver software via USB storage device
- Quick and easy installation & user-friendly menu
- RSS feeds and weather forecasts via Ethernet
- USB power control for power saving in standby mode
- Multi-lingual support on screen menu (OSD)
- Electronic TV Programme Guide (EPG) for on screen programme information of present/following event information up to 7 days
- High definition on screen display (OSD)
- Booking of events directly from EPG
- 30 event timers with 3 modes (once, daily, weekly)
- Teletext, full multi-lingual DVB subtitling and audio track support
- 4 favourite lists for TV and radio programmes
- Parental lock function for menu and rating control for channel
- Automatic and manual channel scan options
- Many channel handling options: lock, move, skip, delete and rename
- Power on with last viewed channel
- Digital sound through coaxial output (S/PDIF) by connecting to digital amplifier
- PAL/NTSC video out
- Power saving automatic standby function
- Connections: ANT IN, TV SCART, HDMI, S/PDIF coaxial, USB port, RJ45 Ethernet

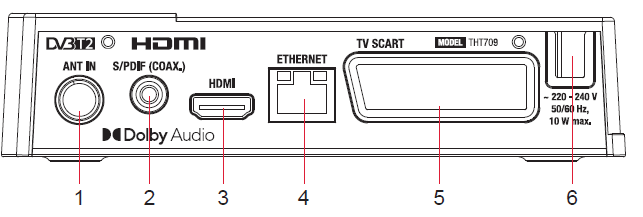

Backside connectors
1. Antenna
2. Digital audio amplifier
3. TV (HDMI)
4. Ethernet (RJ45)
5. TV (SCART)
6. Power cord
Features
Video | |
---|---|
Video resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Audio | |
---|---|
Audio support | Dolby Digital Plus/AC3/PCM MPEG MusiCam Layer II |
Audio modes | Stereo, Mono |
General Data | |
---|---|
Input voltage | 220 - 240 V AC ~ 50/60 Hz |
Power consumption | 5 W (typ.) 10 W (max.) |
Power consumption in standby | max. 1.0 W |
Operating temperature | 0 ~ +40° C |
Storage temperature | -25 ~ +60 °C |
Operating humidity range | 10 ~ 85% RH, non-condensing |
Size (WxDxH) in mm | 152 x 112 x 38 |
Weight in kg | 0.22 |
EAN | 9120072371301 |
Tuner | |
---|---|
RF input level | -20 ~ -82 dBm |
